Vehicle BeamBridge

BeamBridges

Our Vehicle BeamBridge has been designed to carry heavy loads with the ability to support any road vehicle and mobile cranes up to 120Te GVW. It can be rapidly deployed as it comes pre-assembled to be lifted into place by crane. Bridge units can be placed side by side, extending the width up to 12m.

Mabey Hire vehicle beam bridge flat top
Mabey Hire vehicle beam bridge roll over
Mabey Hire vehicle beam bridge flat top next to bridge over river
Mabey Hire vehicle beam bridge on site in canary wharf
Mabey Hire vehicle beam bridge on site in rural cumbria

Product highlights

  • Available in both flat top and rollover formats
  • Anti-skid surface for additional safety
  • Spans between 6m to 20m
  • Pre-assembled for rapid deployment
  • Can be installed in a skewed staggered format for more unusual situations

In action

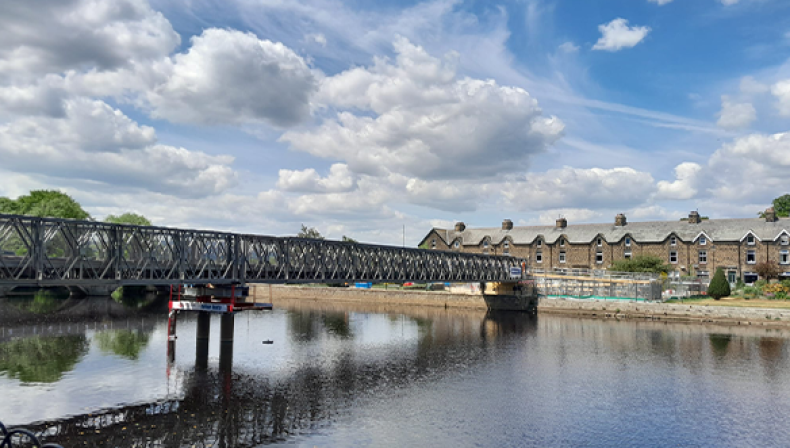

Temporary bridge utilised during refurbishments to 13th century listed bridge
Otley, Leeds
Temporary bridge utilised during refurbishments to 13th century listed bridge

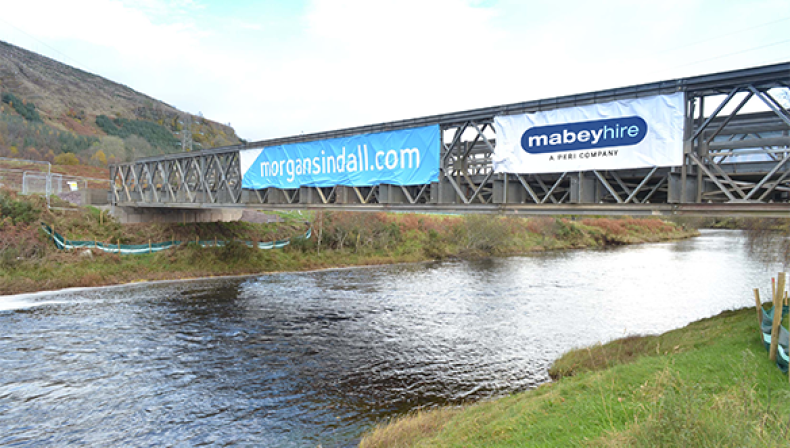

Temporary bridge protects Scotland’s rural landscape during major Project VISTA works
Killin, Scotland
Temporary bridge protects Scotland’s rural landscape during major Project VISTA works

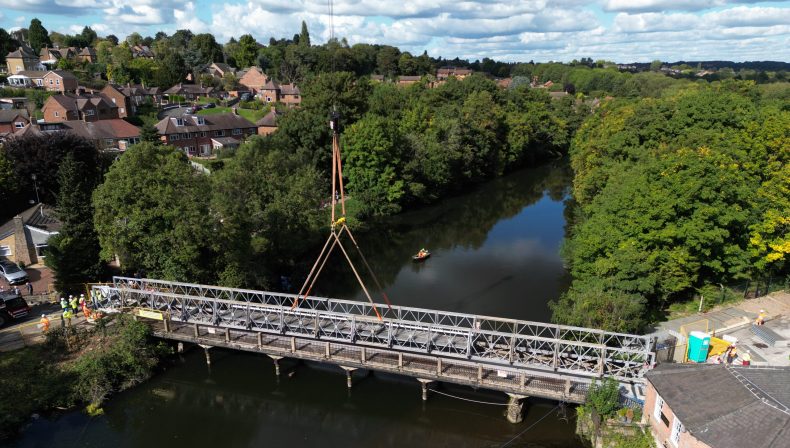

Complex bridge lift helps reconnect local Derby community
Darley Abbey, Derby
Complex bridge lift helps reconnect local Derby community

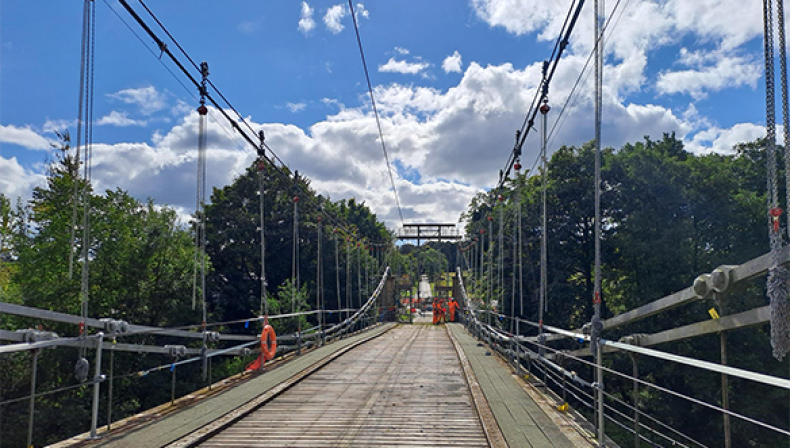

183 year old bridge revived with modern engineering
Whorlton Bridge, County Durham
183 year old bridge revived with modern engineering

Related applications

Bridge Strengthening Structural Monitoring
Bridging & Site Access

Related products

Mabey Hire pedestrian beam bridge
Mabey Hire pedestrian beam bridge on site over river
Mabey Hire pedestrian beam bridge on site over river by residential area
Pedestrian BeamBridge
The Pedestrian BeamBridge solution can be deployed rapidly and is a temporary solution for managing pedestrian direction and access.
Mabey Hire MU bridge
Mabey Hire MU bridge on site over river
Mabey Hire MU bridge being lifted over railway line
Mabey Hire MU bridge on site over water
MU Bridge
A heavy-duty panel bridge constructed from interchangeable steel components.
Mabey Hire compact 200 panel bridge
Mabey Hire compact 200 panel bridge over river
Mabey Hire compact 200 panel bridge installation over water
Mabey Hire compact 200 panel bridge over water next to fields
Compact 200
A heavy-duty panel bridge constructed from interchangeable steel components.
Contact Phone Number

Give us a call

For all project specific design and technical enquiries, please contact your local service team

Chat icon

Send us an email

If you want to talk to us about your project, send us an email and a brief outline of how we can help and we’ll be in touch

[email protected]
Variation:
Overall length (mm) Modular width (mm) Max depth at centre (mm) Min depth at ends inc bearings (mm) Unit weight exc. parapet (kg) Parapet & kerb weight – one side (kg)
6090 1725 537 320 3560 790
9140 1725 537 320 4960 920
12180 1725 627 320 7315 1340
16240 1725 808 502 11160 1500
20300 1725 1063 446 15800 1960
Overall length (mm) Modular width (mm) Max depth at centre (mm) Min depth at ends inc bearings (mm) Unit weight exc. parapet (kg) Parapet & kerb weight – one side (kg)
9140 1725 486 274 5230 920
12180 1725 622 400 7100 1330
16240 1725 865 501 12605 1500
20000 1725 1000 560 17055 2000

Carriageway Widths

2 Units – Road Width 3405mm – Overall Width 4171mm

3 Units – Road Width 5135mm – Overall Width 5911mm

4 Units – Road Width 6865mm – Overall Width 7641mm

5 Units – Road Width 8595mm – Overall Width 9371mm

6 Units – Road Width 10325mm – Overall Width 11101mm

7 Units – Road Width 12055mm – Overall Width 12831mm

Flat Top Vehicle BeamBridge

Engineered in the classic “fish belly” design, this bridge delivers exceptional strength and reliability for projects where depth can be easily accommodated. Its modular sections allow seamless customization, enabling single or multi-span solutions to meet diverse width requirements.

Multiple sections can be placed next to each other to create a single or multiple span to meet your bridge width requirements.

Rollover Vehicle BeamBridge

Designed for versatility, this bridge features a streamlined underside profile, ensuring easy access for maintenance and inspection. Ideal for temporary over-bridging applications, it offers a robust solution for projects requiring uninterrupted operations while existing structures undergo repair or reinforcement. Built for efficiency and long-term value.

Autocad File Vehicle BeamBridge AutoCAD
Revit File Vehicle BeamBridge Revit BIM
Video File Vehicle BeamBridge Installation Guide
