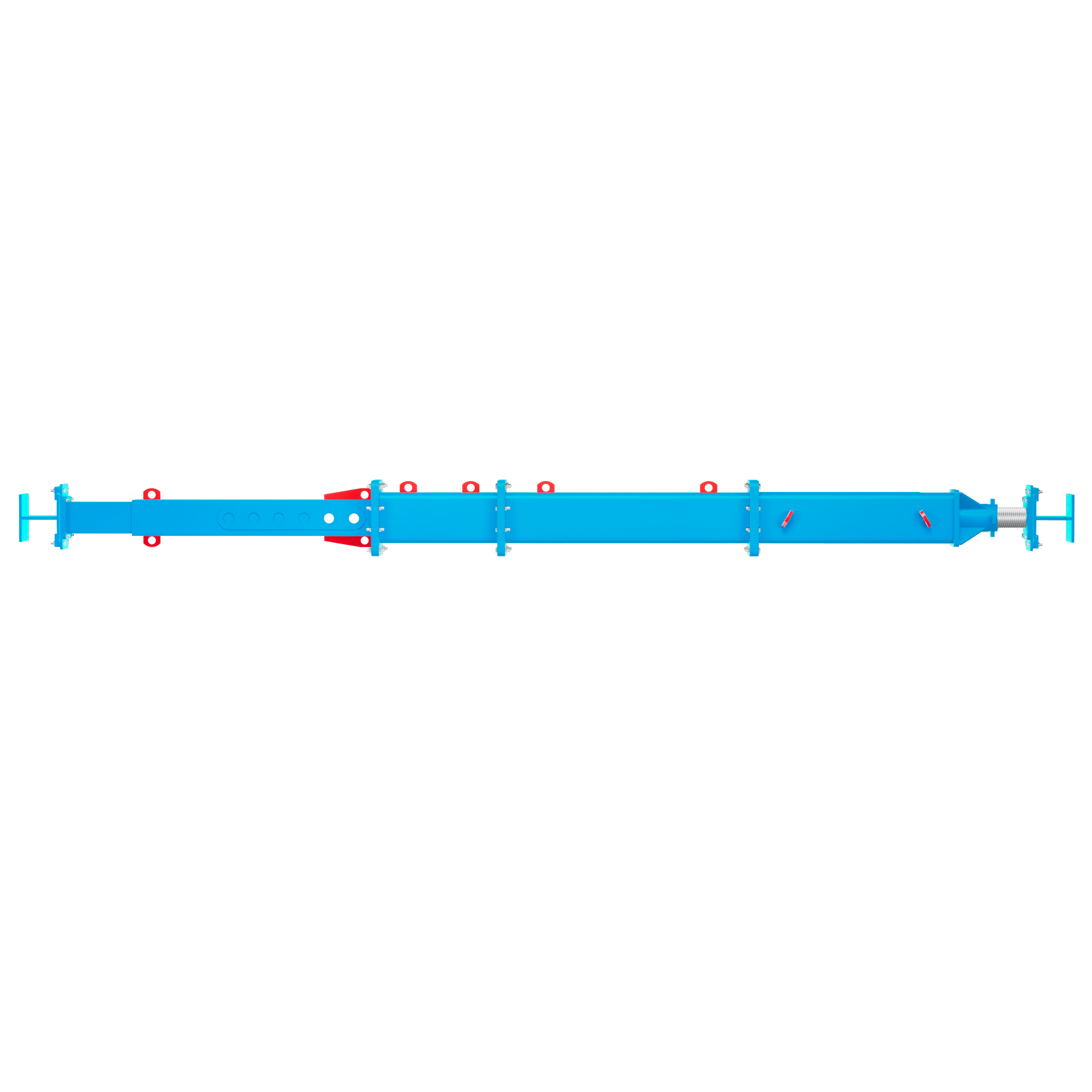

SBS400

Bracing Struts

A medium duty strut extension designed to be used with our 80t and 250t Hydraulic End Units, as well as our 185t Hybrid End Unit.

Product highlights

  • Can be used in conjunction with our 80t and 250t Hydraulic End Units, as well as our 185t Hybrid End Unit
  • Compatible with Multibrace, Super Shaftbrace and Supershaft Plus
  • Typical maximum length of 19640mm (dependent on End Unit and loading)

In action

Providing resilience to Scottish water supply with EVE
Edmiston Drive, Glasgow
Providing resilience to Scottish water supply with EVE
Modular groundworks solutions aid in iconic Fleet Street renovation
Fleet Street, London
Modular groundworks solutions aid in iconic Fleet Street renovation
Enabling safe and efficient delivery of utility temporary works project with EVE
Happendon, Scotland
Enabling safe and efficient delivery of utility temporary works project with EVE

Related applications

Groundworks Basement Propping
Cofferdams

Related Products

Mabey Hire SBS600 bracing strut
SBS1000
Our Super Bracing Strut is a high load capacity strut, designed to be used in conjunction with our Super Shaftbrace and Supershaft Plus syst…
Insite real-time monitoring
Insite is our unique web portal, which allows customers to instantly see and analyse the data from any environmental or structural monitorin…
Phone icon

Give us a call

For all project specific design and technical enquiries, please contact your local service team

Chat icon

Send us an email

If you want to talk to us about your project, send us an email and a brief outline of how we can help and we’ll be in touch

[email protected]
Variation:
Length min (mm) Length max (mm) Safe working load (kN) Weight (kg)
7250 8050 800 2109
7750 8550 800 2370
8250 9050 800 2300
8750 9550 800 2561
9250 10050 800 2657
9750 10550 800 2917
10250 11050 800 2521
10750 11550 800 2781
11250 12050 800 2877
11750 12550 800 3138
12250 13050 800 3068
12750 13550 800 3329
13250 14050 800 3425
13750 14550 785 3685
14250 15050 765 3450
14750 15550 740 3711
15250 16050 720 3807
15750 16550 700 4067
16250 17050 680 3998
16750 17550 660 4258
17250 18050 640 4354
17750 18550 620 4614
18250 19050 600 4218
18750 19550 580 4479
19250 20050 555 4575
19750 20550 535 4835
Length min (mm) Length max (mm) Safe working load (kN) Weight (kg)
2165 2765 1850 963
3165 3765 1850 1323
4040 5640 1850 1530
5040 6640 1850 1890
6040 7640 1850 2080
7040 8640 1850 2440
8040 9640 1850 2450
9040 10640 1850 2810
10040 11640 1850 3000
11040 12640 1850 3360
12040 13640 1850 3230
13040 14640 1698 3590
14040 15640 1479 3780
15040 16640 1296 4140
16040 17640 1121 4150
17040 18640 1000 4510
18040 19640 860 4700
Length min (mm) Length max (mm) Safe working load (kN) Weight (kg)
1995 2795 2500 2386
2495 3295 2500 2647
2995 3795 2500 2743
3495 4295 2500 3003
3995 4795 2500 2934
4495 5295 2500 3194
4995 5795 2500 3290
5495 6295 2500 3551
5995 6795 2500 3316
6495 7295 2500 3576
6995 7795 2500 3672
7495 8295 2500 3933
7995 8795 2500 3863
8495 9295 2500 4124
8995 9795 2500 4220
9495 10295 2500 4480
9995 10795 2500 4084
10495 11295 2408 4344
10995 11795 2293 4440
11495 12295 2163 4701
11995 12795 2050 4631
12495 13295 1908 4892
12995 13795 1801 4988
13495 14295 1696 5248
13995 14795 1596 5013
14495 15295 1473 5274
14995 15795 1385 5370
15495 16295 1286 5630
15995 16795 1207 5561
16495 17295 1108 5821
16995 17795 1039 5917
